Antwerp 3kw backup power

^R22,274_.00

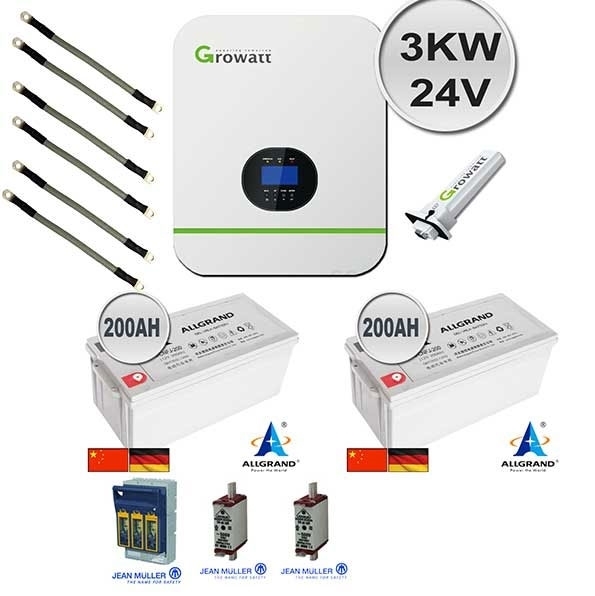

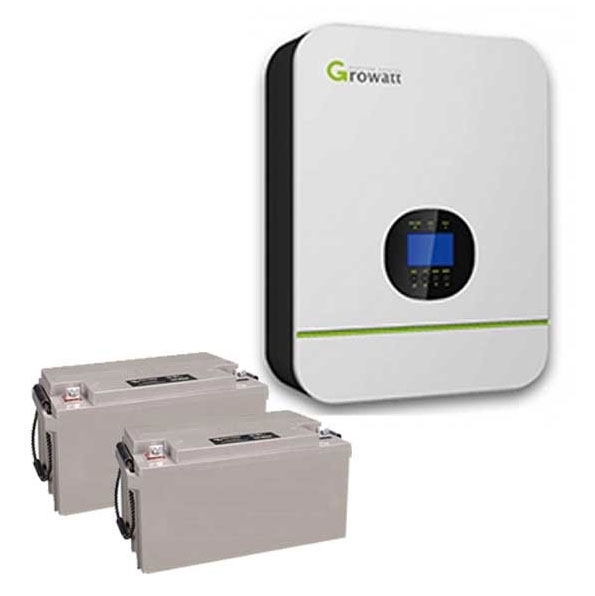

• The 3KW 24V Growatt 2.4kWh SLA Backup Power Kit is ideal to function as a backup system for when we go into a load shedding phase in Antwerp.
• This means that the system will automatically take over the delivering of power to your essential portions of your premises in Antwerp.
• Ideal for small office and domestic implementations in and around Antwerp with an opportunity to expand into more sophisticated system that includes solar panels for the generation of power.
• Inverter: 1x 3Kw 24V Growatt SPF5000TL HVM with Wi-Fi
• Solar Battery: 2x CLT 200AH 12v valve regulated sealed Gel Battery- See product
• Fuse: 1x Fuse switch disconnector Size 00 160A 3P
• Fuse: 2x 100A 500V Din Fuse 100NHG000B
• Battery Cable: 2x 150mm L/35mm Grey Battery cable with lugs
• Battery Cable: 2x 450mm L/35mm Grey Battery cable with lugs
• Battery Cable: 2x 1500mm L/35mm Grey Battery cable with lugs

^R34,000_.00

• The 3Kw Synapse Economy Solar Off-Grid Kit offers power generation in the form of solar panels which is connected to the system and thus offers prolonged periods of delivering power while the Escom power is in loadshedding.
• 15 AMP Fuses 10X38 1000VDC 4
• ARaymond Powersnap 90B W/Grounding 8
• Bussmann Fuse Holder 1Pole 1000Vdc 10×38 4
• Cable Pack for US2000B 1
• CITEL SPD Type2 130-180Vdc 40kA + Remote 1
• CITEL SPD Type2 230Vac 1P+N 40kA Compact 1
• Female Cable Mount MC4 Connector Coupler 10
• IDE DB IP65 1 x 12 Way SurfaceDIN 1
• IDE DB IP65 1 x 12 Way SurfaceDIN 1
• JA Solar Solar Panel 390W Mono PERC 2
• Male Cable Mount MC4 Connector Coupler 10
• NH00 Fuse 160A 2
• NOARK DC MCB’s Ex9BP-N 1Pole 63A 6kA 2
• P2000 Indent 1.0mm Galv FH Slot 41×41 6M 1
• Permoweld Welding Cable 35mm² BLACK 5
• Permoweld Welding Cable 35mm² RED 5
• Pronutec Size NH00 3Pole 160A Fuse 1
• Pylontech US2000 2.4kWh Li-Ion Solar Battery 1
• Roof Tile Perpendicular Zinc Plated 8
• Schneider Acti9 MCB IC60A 2P 63A C CURVE 1
• SYNAPSE 3.0+ Economy 3KVA Inverter PWM 1
• Zonn Kabel Solar Cable EN50618 6mm² 1.5kV 50
• Zonn Kabel Solar Cable EN50618 6mm² 1.5kV 50

^R88,340_.00

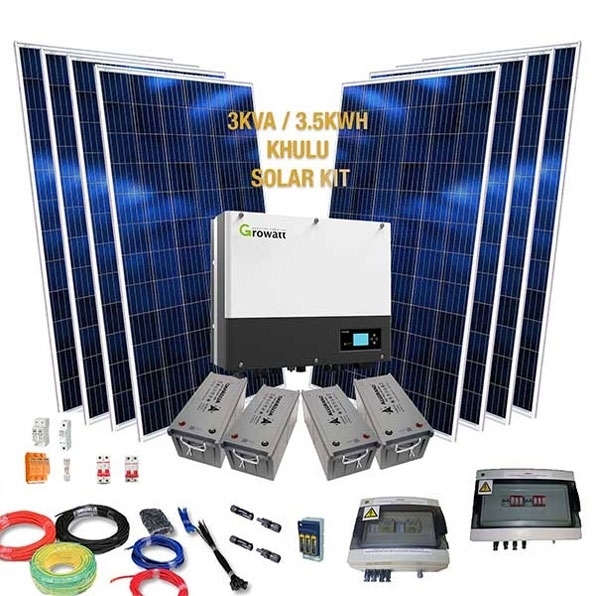

• The 6kW 3kVA Full Hybrid Solar Kit was designed to not leave you in the dark. Consisting of a state of the art 3kVA/6kW full hybrid inverter from Growatt with WiFi monitoring and grid feedback capabilities, paired together with our world-class 340Wp solar panels, stored in an array of range-topping 200Ah deep-cycle GEL AGM batteries, this kit oozes quality. Component breakdown:
• 8 x 340Wp World Class Solar Panels
• 3kVA Full Hybrid inverter with WiFi monitoring and grid feedback functionality
• 4 x 200Ah GEL AGM Batteries
• Distribution Box with complete AC and DC circuit protection
• PV Combiner Box
• Set of MC4 connectors
• Battery storage rack
• Complete set of cabling, grounding rods and accessories suitable for a typical 2 – 3 bedroom home or small to medium office.
• Solar Panel mounting racks not included.
• This kit is able to store around 9.6 Units (kWh) of energy in the battery for off-grid usage or when no power is available from the grid or solar panels. Thus this kit will be able to provide enough power to run your television, LED lighting, fridge, microwave and so forth at night or in a no grid / solar power situation. Please note, that it is not recommended to power your electric geyser or stove from this kit as it will greatly diminish the lifespan of the batteries. The solar panels in this kit are able to produce up to 2.72 Units (kWh) an hour in ideal conditions. The inverter included in this kit can be set to prioritize power distribution from the solar panels to either charging the batteries or powering your household grid as needed and can feedback into the grid in order to provide greater savings. By default, the inverter will distribute solar power evenly to charge your batteries and provide power to your internal household grid. Going off-grid with solar is a lifestyle change, meaning that one must learn to use electricity sparingly and only as needed.
